Pressolina 30 tonnellate
The pneumatic presses of the PRESSOLINA series with manual drive have the prevailing characteristic in versatility. They are silent presses with low power consumption because the motor only rotates during application. They can also be programmed for different uses: for work runs of less than 6 mm pedal control or directly from the toggle lever. For upper stroke and up to 45 mm work pedal control with guard or bimanual control. The cycle time or the power supplied can be programmed through a pressure switch. It is also possible to program a piece exhaust blow and any movable guards.
Pressing 30 tons is easy to adjust and is suitable for MONTAGGI in general and small blanking, thanks to a manual approach system of 45 mm (up to 80 mm) with toggle lever, automatic start of the working stroke (40 kN) of 6 mm for versions without shelter, up to 45 mm with bimanual and guards. The PRESSOLINA is silent and with low power consumption because the motor only rotates during application. In MANUAL programming with stroke up to 45 mm it is suitable for bearings or similar. The 6 mm stroke version (without guards and with automatic control) is recommended for the production and shearing of small parts and medium series, because the possibility of programming the work cycle makes the product of the operations absolutely repeatable. The modularity of the product allows us to build presses with different characteristics from the standard version.
Main features Press brake 30 oleodinamica
– Depth of swan neck 200 mm
– Wide working light (from p.m.i. 127 mm to p.m.s 290 mm)
– Wide base for clamping pieces and molds 250 × 350 mm
– 230V current
– Easy to use
– Cost and management cost-effectiveness
It can also be programmed for different uses: for a work troke of less than 6 mm. Foot control or directly from the toggle lever. With upper stroke and up to 45 mm Working, pedal control with guard or bimanual control. Programmable the cycle time or the power supplied through a pressure switch. It is possible to program a piece exhaust blow and any movable guards.
Common technical data for the Pressolina 3 tons.
Maximum force kN 30 (others on request)
Knee brace force kN 6/8
Working stroke 6 mm without guard, foot control or automatic 45 mm with guards and bimanual control
Moving head stroke (standard) 65-100 mm
Maximum light p.m.s. 290 mm
Minimum light p.m.i 192 mm
Minimum light p.m.s 172 mm
Minimum light p.m.i 127 mm
Swan neck 200 mm
Overall dimensions 590 x 590 mm
Height 840 mm (excluding rod)
Weight 170 Kg
Technical data Pressolina 30 kN
|Depth of swan neck mm||250|
|Light at the upper midpoint mm||da 290 a 172|
|Light at the lower middle point mm||da 192 a 127|
|Fixing base mm||250 x 350|
|Maximum force kN||30|
|Knee brace force kN||6/8|
|Toggle approach race mm||da 45 a 80|
|Working stroke without shelter mm||6|
|Maximum working stroke mm||45|
|Moving head travel (standard) mm||65 – 100|
|Swan neck mm||200|
|Overall dimensions mm||590 x 590|
|Height mm (excluding rod)||840|

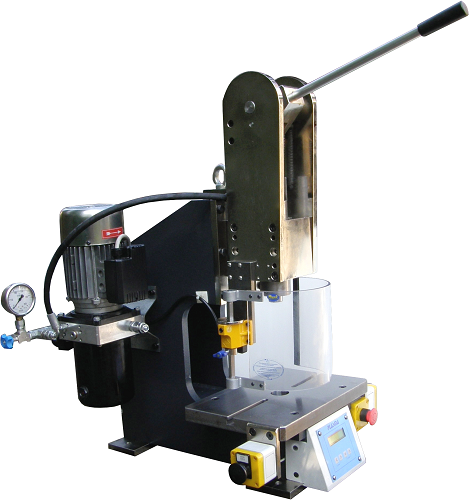

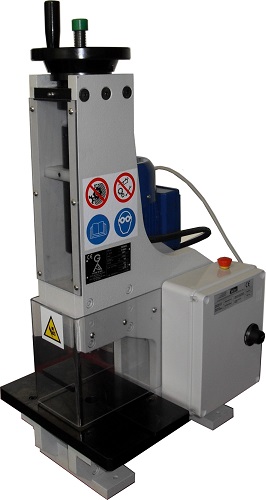

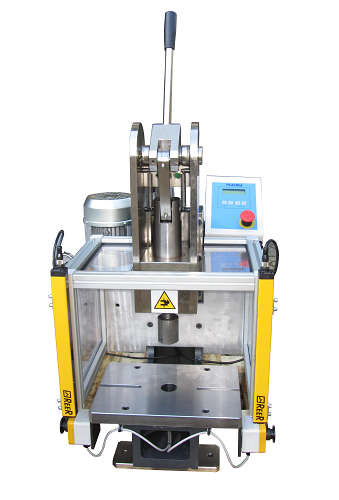

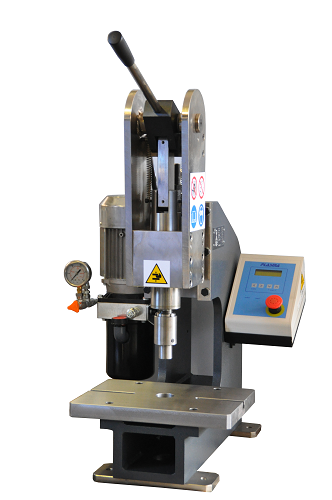

Images Pressolina 30 kN.
