Punching machine 120 Super A3 & A4 format

The punching machine 120 Super A3 & A4 format was created for people who has problems with space, a small activity is starting up in the paper industry, graphics, typography or small series production and looks for a robust machine that lasts over time and guarantees excellent performance.
The punching machine 120 Super A3 & A4 format can be sent in a mounting box to facilitate transport and installation in laboratories, where other punching machine machines can not be installed.

Punching machine 120 Super A3 format in various configurations



Common technical data of punching machine 120 Super A3 format



Format A3
Knee brace force kN 6-8
Hydraulic cylinder force kN 120-150
Maximum die size mm. A3 sup.
Nylon log size mm. 550 x 400
Ingombro base mm. 610 x 400
Overall dimensions mm. 800 x 500
Height (without rod) mm 800
Weight kg 220

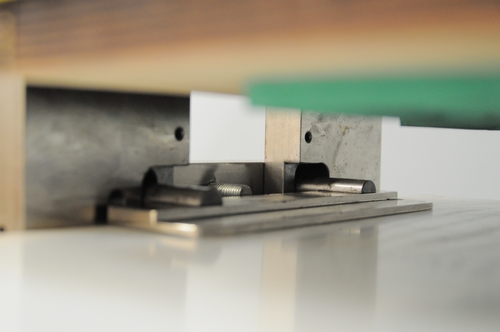

Punch registers for digital prints

Thanks to the registration, the perfect correspondence between printing and punching is possible.
