pressa-ncp100-2

The NCP 100 series presses are suitable for any type of mold and can be equipped with a load cell for controlling the applied power.
On request, the presses can be equipped with photo-electric barriers that allow manual loading directly in the work area. Furthermore, always on request, a mobile pneumatic safety guard can be mounted.
The electrical equipment allows its use as a pressing module in various types of systems. On-board electronic equipment with liquid crystal display to set: normal cycle, two-stroke, jog, reverse gear.



TECHNICAL DATA NCP 100 da 10 ton



Motore kW 4
Forza massima kN 100
Corsa fissa mm 40 (*)
Corse variabili mm 3 pos.
40 – 50 – 60 (*)
Peso Kg 280
Alimentazione 3×230-400 V 50-60 Hz
Sez. max cavo rame mm² 50
Larghezza mm 400
Lunghezza mm 500
Altezza mm 1160

(*) Disponibili corse diverse a richiesta (max 50 mm).

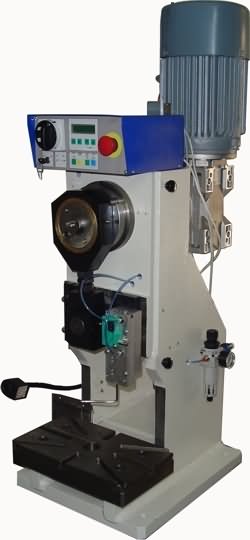

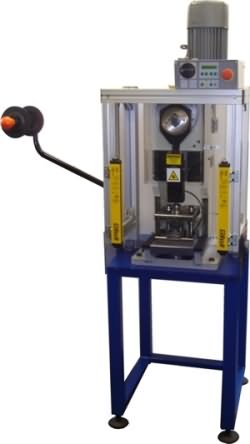

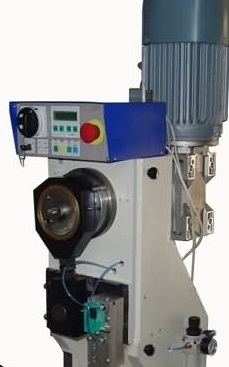

Some images of the 10 ton NCP 100
